USHIO EMD, JP120V-750WCF 119.6mm Long R7S Stage Studio Bulb

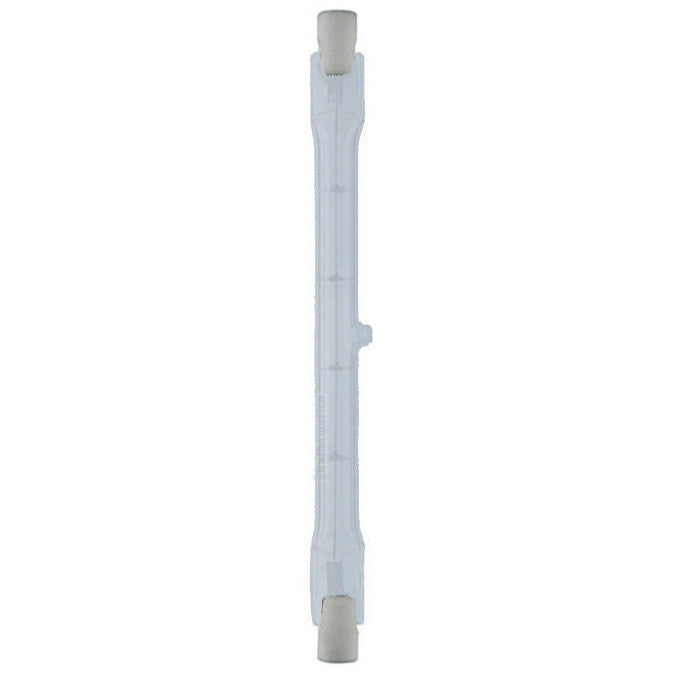

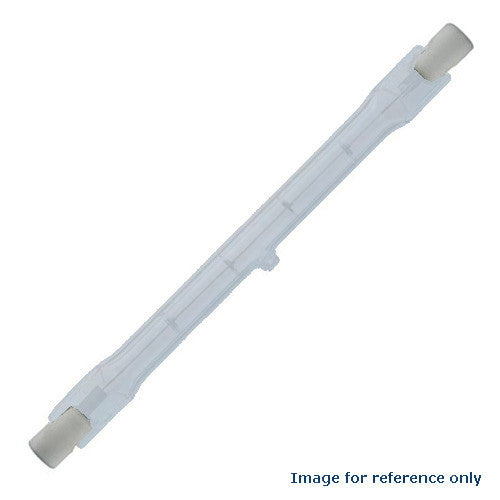

Ushio EMD lamp - 750 Watt 120 Volt, double-ended tungsten halogen light bulb
The Ushio EMD bulb has a light output of 19500 lumens and a rated average life of 400 hours.

The Ushio JP120V-750WCF bulb is used in following application:
- Cyc Strip
- Soft Lights
- Strip Lighting
- Studio/Video

This bulb is used in the equipments below:
- Lowel Tota-light fixture
- Smith-Victor 750-SG
Please submit through Q&A your brand and model you use the Ushio EMD lamp

Cross Reference:
- Ushio 1000327 EMD
, - Ushio JP120V-750WCF
- Atlas Thorn P2/15
- Bulbrite 762255 EMD
- Colortran B75-32F
- Colortran 176-026
- GE 23755 EMD-Q750T3/4
- Lowel EMD
- Smith-Victor 620340 EMD (frosted)

This bulb is also used in Lowel Tota-light fixture

Note:

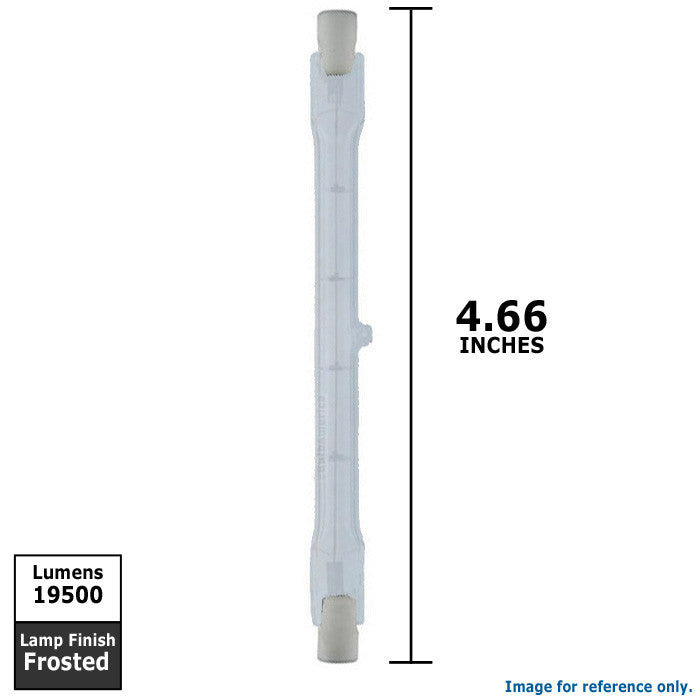

Maximum Overall Length:4.67

Abbreviation Name	EMD, JP120V-750WCF

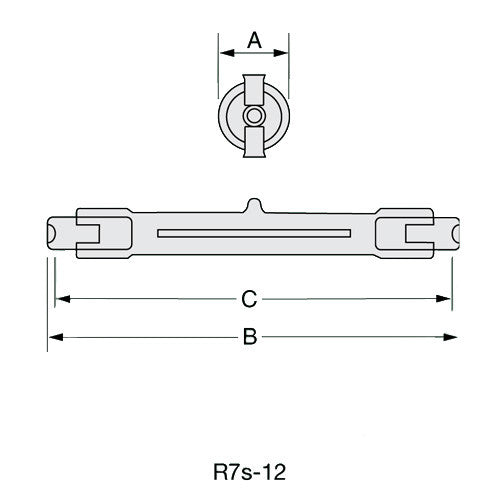

Base	R7s Recessed Single Contact
Bulb Type	Halogen Bulbs
Color	Frost
Diameter (in)	0.47
Filament	C-8
Lamp Finish	Frost
Luminous Flux (LM)	19500
Maximum Overall Length	4.67
Rated Life (Hours)	400
Voltage (V)	120V
Wattage (W)	750W

The EMD bulbs is used in following equipment
- Mole - Richardson Type 2581
- Mole - Richardson Type 2591
- Mole - Richardson Type 2921
- Mole - Richardson Type 3041
- Mole - Richardson Type 3051
- Mole - Richardson Type 3211
- Mole - Richardson Type 3371
- Mole - Richardson Type 3571
- Mole - Richardson Type 7261
- Mole - Richardson Type 7281
- Mole - Richardson Type 7291
