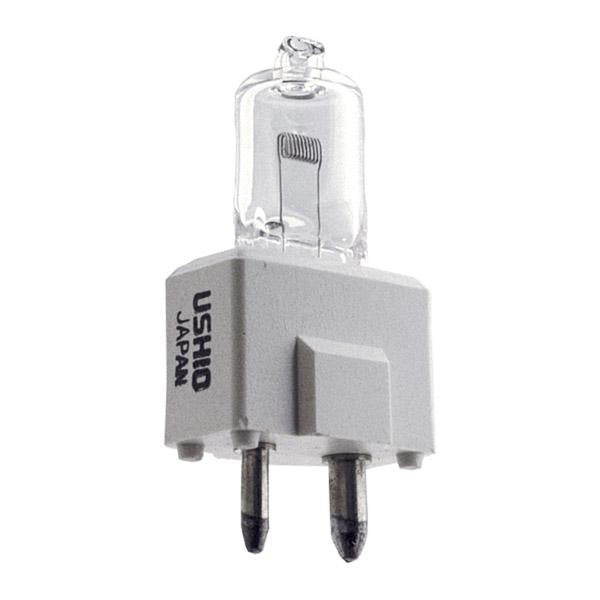

USHIO FDT JC12V 100W 12V GY9.5 Halogen Base Projection Lamp

Ushio SKU: 1000504
$858 $16.99 USD
232 in stock



Description

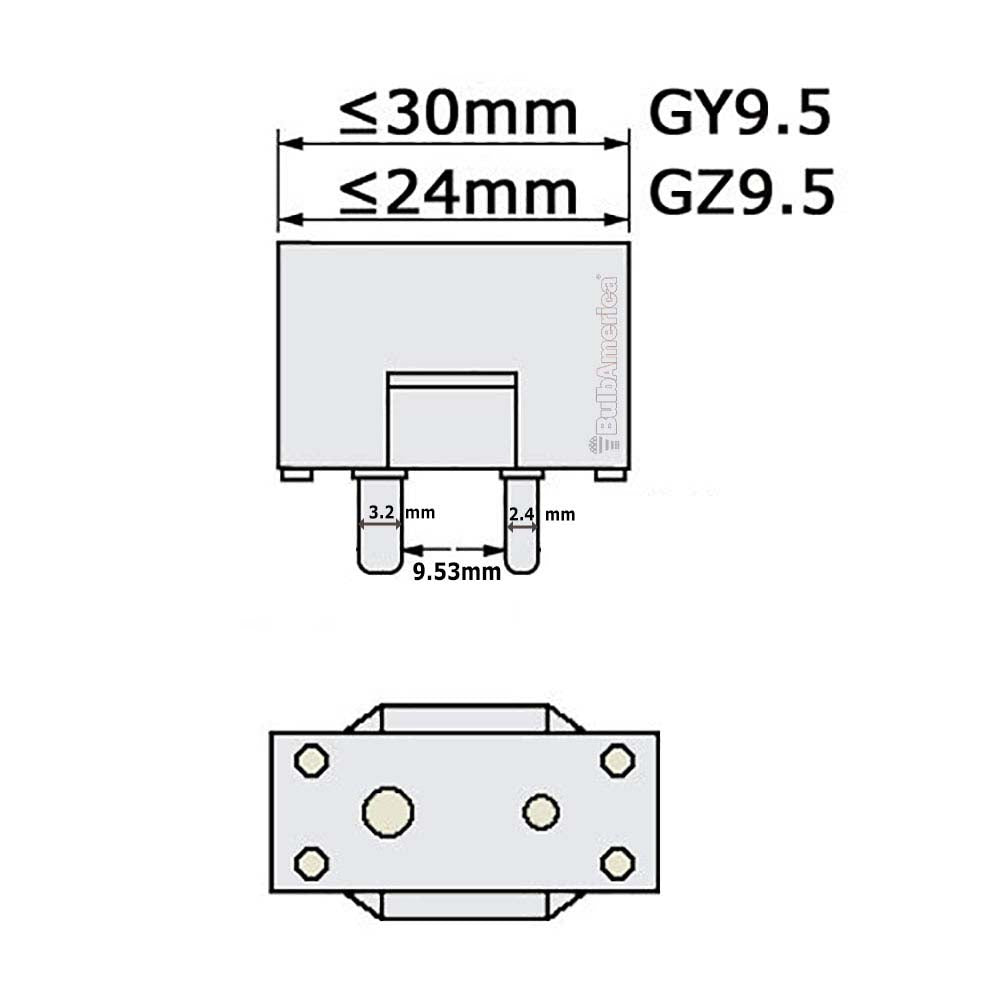

The Ushio FDT replacement lamp has a Ushio product code of 1000504. This Ushio FDT lamp is a 100 watt bulb. The Ushio FDT bulb is a 12 volt bulb. The Ushio FDT replacement bulb has a part number of BC2424. This Ushio lamp has an ANSI code of FDT. The bulb type of this Ushio JC12V-100W lamp is type T-3.5. The base type of the Ushio FDT replacement bulb may also be called T3.5. The Ushio FDT replacement lamp has a base type of GY9.5 (2-Pin Prefocus). The maximum overall length of the Ushio FDT replacement lamp is 2.244 inches or 57.0 millimeters. The bulb diameter of the Ushio JC12V-100W replacement bulb is 0.453 inches or 11.5 millimeters. The light center length of this Ushio FDT bulb is 1.063 inches or 27.0 millimeters. The Ushio JC12V-100W replacement lamp is often referred to by the product code 1000504. The manufacturer continuous use average life rating for this Ushio FDT lamp is 50 hours. The color temperature of this replacement bulb is 3300 degrees Kelvin. The rated lumens value of the Ushio FDT replacement lamp is 2900. The filament type of this Ushio JC12V-100W bulb is CBar6. The Ushio FDT replacement bulb has a Clear finish. The operating position of this replacement lamp is HD.


Features:
- ANSI Code: FDT,JC12V GY9.5
- Wattage: 100W
- Voltage: 12V
- Base: GY9.5
- Average Rated Life: 50 hours

Specs

Prod. ID / Ansi code FDT
Description FDT,JC12V GY9.5
Description 2 100W 12V GY9.5
Item Type Halogen
Base GY9.5
Voltage 12v
Wattage 100w
Burn Position BD/HZ
Bulb Shape T3.5
Bulb finish CLEAR
Color Temp (k) 3300
Filament CBAR6
Front Glass cover No
Initial Lumens (lm) 2900
Luminous Flux (lm) 2900
Life (hr) 50
Diameter (mm) 11.5
MOL (mm) 57
Lgiht Center Length (mm) 27
