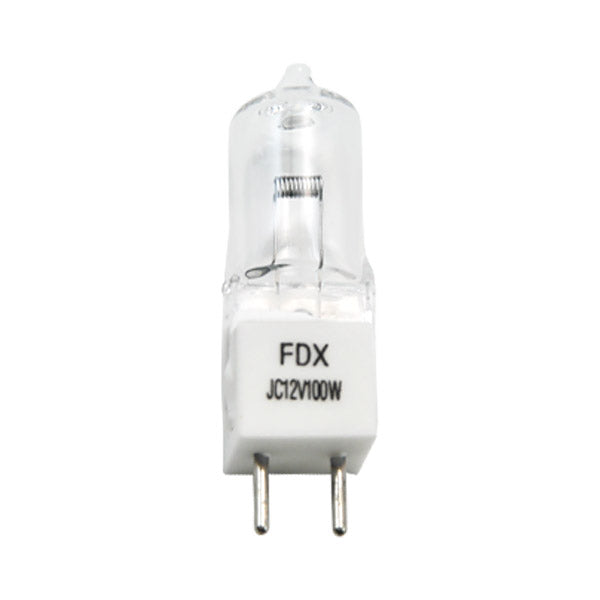

USHIO FDX JC12V-100WCG2 G6.35 Base Halogen Projection Lamp

Ushio SKU: 1000507
$1353 $21.99 USD
48 in stock



Description

The Ushio FDX replacement lamp has a Ushio product code of 1000507. This Ushio JC12V-100WCG2 bulb is a 100 watt bulb. The Ushio FDX lamp is a 12 volt bulb. The Ushio FDX replacement lamp has a part number of BC1637. This Ushio bulb has an ANSI code of FDX. The bulb type of this Ushio JC12V-100WCG2 lamp is type T-3.5. The base type of the Ushio FDX replacement lamp may also be called T3.5. The Ushio FDX replacement lamp has a base type of GY6.35 (2-Pin). The maximum overall length of the Ushio FDX replacement lamp is 1.732 inches or 44.0 millimeters. The bulb diameter of the Ushio FDX replacement lamp is 0.453 inches or 11.5 millimeters. The light center length of this Ushio FDX bulb is 1.181 inches or 30.0 millimeters. The Ushio FDX replacement bulb is often referred to by the product code 1000507. The manufacturer continuous use average life rating for this Ushio FDX lamp is 50 hours. The color temperature of this replacement lamp is 3300 degrees Kelvin. The rated lumens value of the Ushio JC12V-100WCG2 replacement bulb is 3500. The filament type of this Ushio FDX bulb is CBar6. The Ushio JC12V-100WCG2 replacement lamp has a Clear finish. The operating position of this replacement bulb is Universal.


Features:
- ANSI Code: FDX,JC12V-100WCG2
- Wattage: 100W
- Voltage: 12V
- Base: G6.35
- Average Rated Life: 50 hours

Specs

Prod. ID / Ansi code FDX
Description FDX,JC12V-100WCG2
Description 2 100W 12V
Item Type Halogen
Base G6.35
Voltage 12v
Wattage 100w
Burn Position ANY
Bulb Shape T3.5
Bulb finish CLEAR
Color Temp (k) 3300
Filament CBAR6
Front Glass cover No
Initial Lumens (lm) 3500
Life (hr) 50
Diameter (mm) 11.5
Diameter (in) 0.45
MOL (in) 1.73
MOL (mm) 44
Lgiht Center Length (mm) 30
