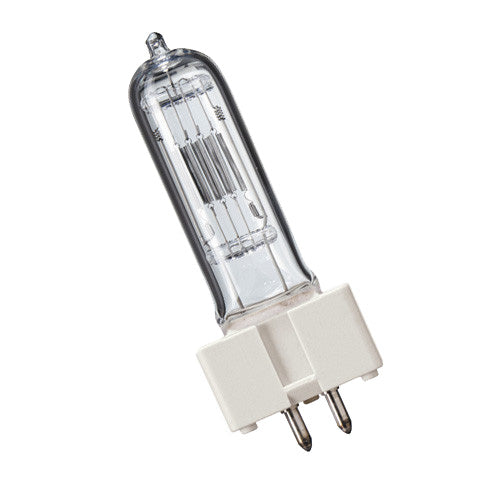

USHIO 1003327 JCS120V-575WX 575W/120V GY9.5 2 Pin 1500 Hours Theatrical Fresnels Halogen Replacement Bulb
The Ushio 1003327 - 575 watt Halogen lamps are designed as a medium wattage alternative to the FKW 300W and FRK 650W lamps used in theatrical fresnels. These medium wattage lamps allow for two instruments to be used on a 1200 watt capacity dimming channel while maximizing the light output.
The Halogen capsule utilizes a bi-plane filament design and incorporates a special gas mixture to prevent overheating and lamp darkening in smaller and hotter instrument designs.

This Ushio bulb is available in:
SKU: 1003326 - 15,500 lumens 300 Hours
SKU: 103327 - 12,000 lumens 1500 hour (this listing)

- Excellent Color Consistency From Lamp to Lamp
- High Color Stability Over the Entire Lifetime
- Permits 2 Fixtures Per Circuit

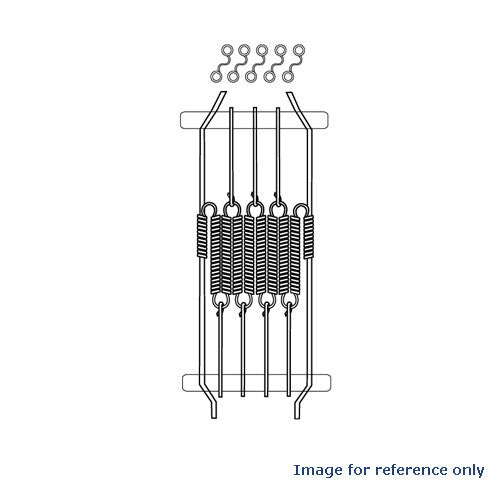

- Bi-Plane Filament
- GY9.5 Base


Abbreviation Name JCS120V-575WX

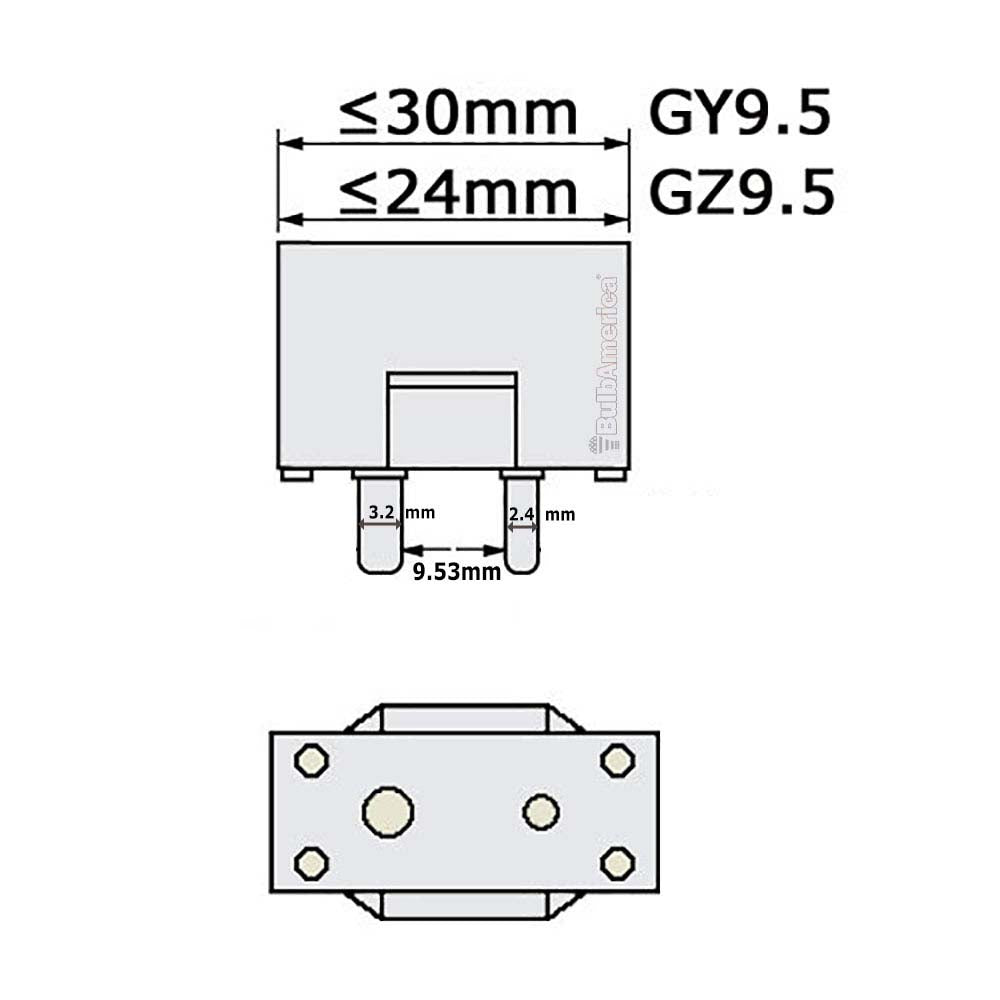

Base GY9.5 2-Pin Prefocus
Bulb Type Halogen Bulbs
Color Rendering Index (CRI) 100
Color Temperature (K) 3200K
Diameter (in) 0.98
Filament 8-C-13D
Lamp Finish Clear
Luminous Flux (LM) 12000
Maximum Overall Length (in) 3.54
Rated Life (Hours) 1500
Shape T6
Voltage (V) 120V
Wattage (W) 575W
