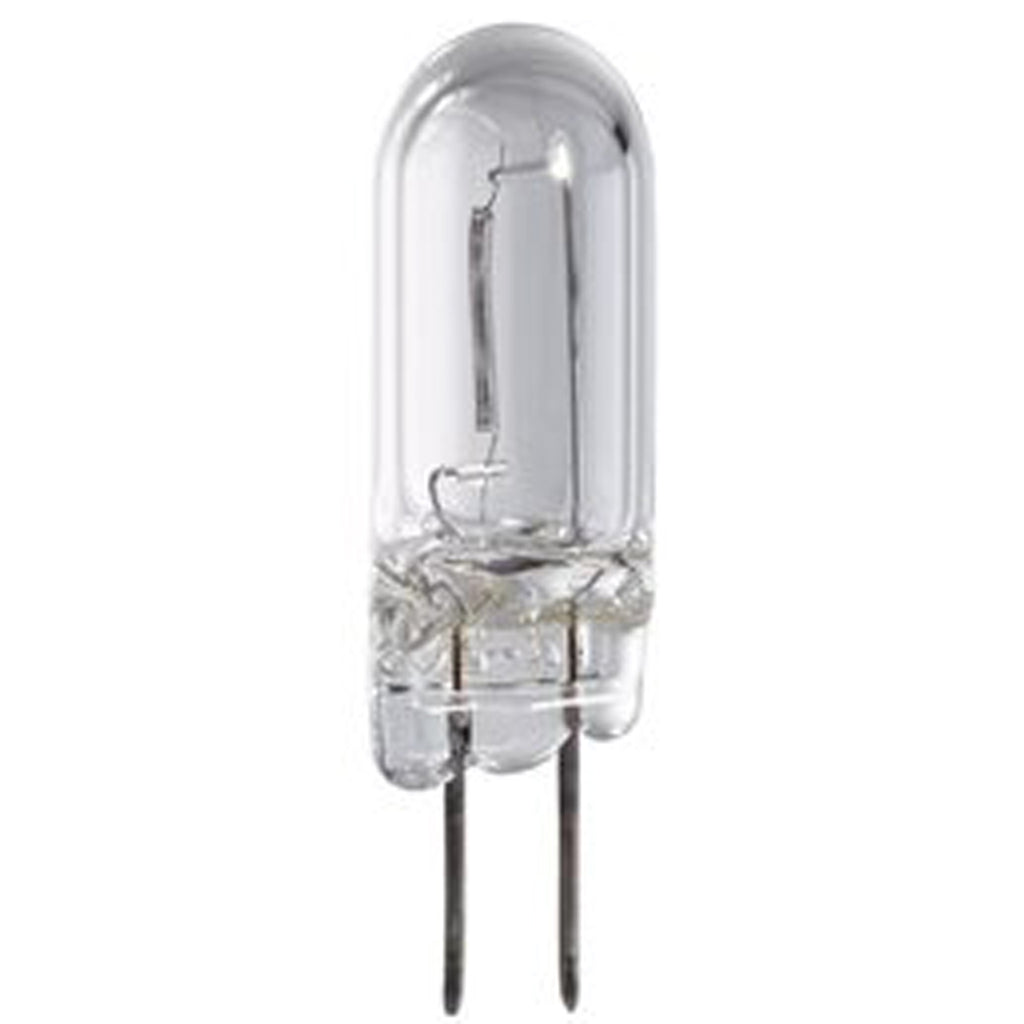

Ushio JCX24V-20W/G4 20w G4 Bi-Pin 24v low-voltage Clear Xenon Halogen Bulb

The Ushio JCX24V-20W replacement lamp has a Ushio product code of 1003085. This Ushio JCX24V-20W bulb is a 20 watt bulb. The Ushio JCX24V-20W bulb is a 24 volt bulb. The Ushio JCX24V-20W replacement bulb has a part number of BC7840. The bulb type of this Ushio JCX24V-20W lamp is type T-3. The base type of the Ushio JCX24V-20W replacement bulb may also be called T3. The Ushio JCX24V-20W replacement lamp has a base type of G4 (Miniature 2-Pin). The maximum overall length of the Ushio JCX24V-20W replacement bulb is 1.614 inches or 41.0 millimeters. The bulb diameter of the Ushio JCX24V-20W replacement lamp is 0.370 inches or 9.4 millimeters. The light center length of this Ushio JCX24V-20W bulb is 0.800 inches or 20.3 millimeters. The Ushio JCX24V-20W replacement lamp is often referred to by the product code 1003085. The Ushio JCX24V-20W replacement lamp has a reorder code of BC7840. The manufacturer continuous use average life rating for this Ushio JCX24V-20W lamp is 5000 hours. The color temperature of this replacement lamp is 2600 degrees Kelvin. The rated lumens value of the Ushio JCX24V-20W replacement bulb is 200. The filament type of this Ushio JCX24V-20W lamp is CC-8. The Ushio JCX24V-20W replacement bulb has a Clear finish. The operating position of this replacement lamp is Universal.

Manual:

Ushio 1003085 Data Sheet
