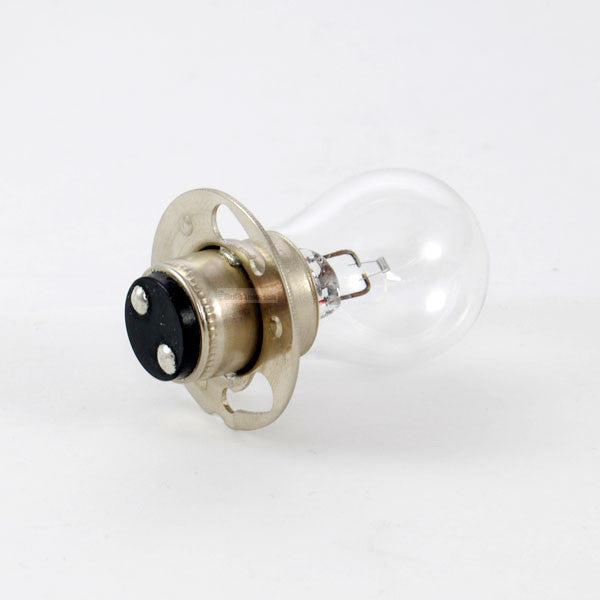

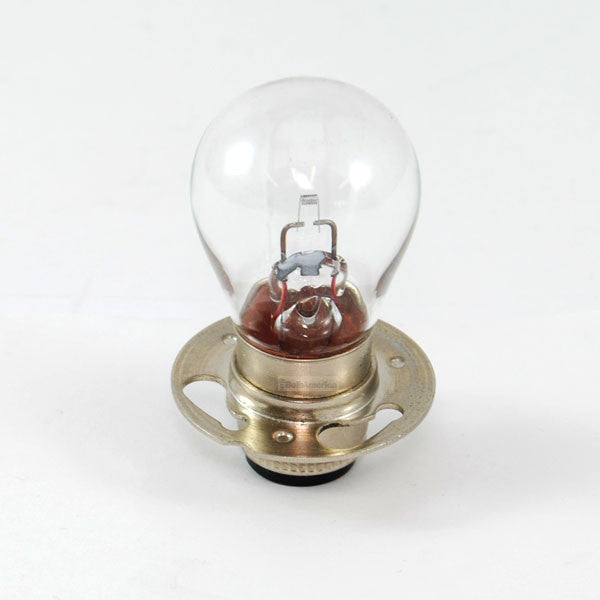

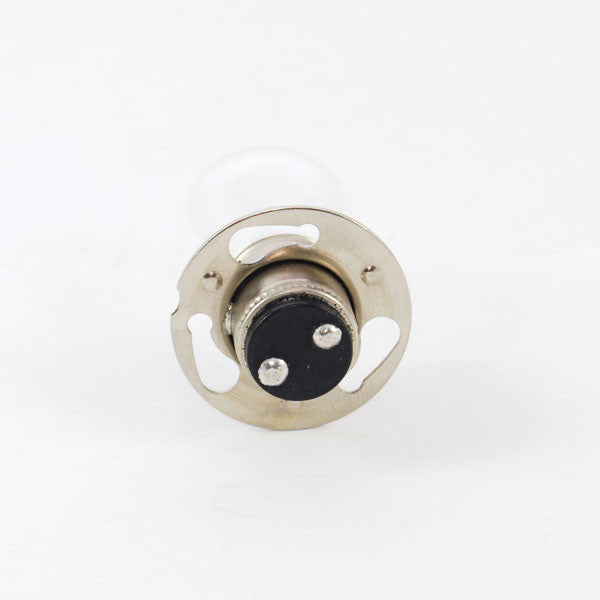

USHIO SM-1630/6.5V-2.75A Incandescent Lamp

Ushio SM-1630 Microscope Replacement Bulb

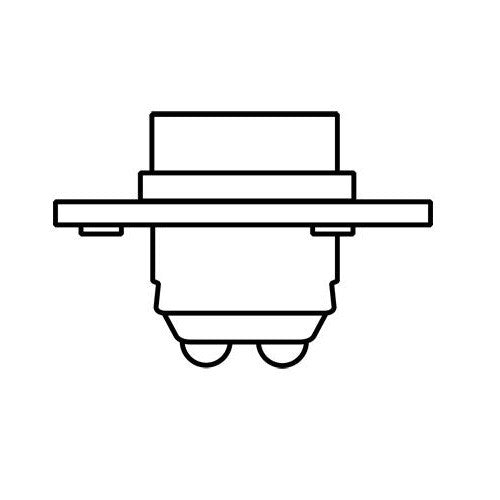

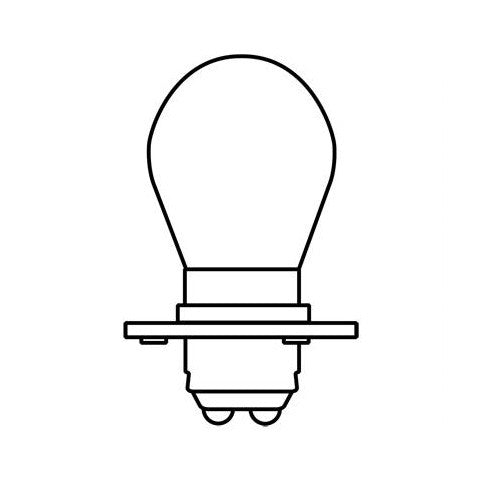

> The Ushio 1630 replacement bulb has a base type of P15d (DC Prefocus). The maximum overall length of the Ushio SM-1630 replacement lamp is 1.890 inches or 48.0 millimeters. The bulb diameter of the Ushio SM-1630 replacement bulb is 0.984 inches or 25.0 millimeters.

This bulb is used as a replacement bulb for Bausch & Lomb 31-31-79

Cross Reference:
- GE 27488 1630 UNIT
- GE 27489 1630 BULK
- Grainger 6VF72
- Satco S7070 1630
- Ushio 8000092 SM-1630, Sci/Med Lamp

Features:
- ANSI Code: SM-1630
- Wattage: 17.88W
- Voltage: 6.5V
- Base: P15D
- Average Rated Life: 100 hours

Prod. ID / Ansi code	SM-1630
Description	SM-1630,Sci/Med Lamp
Description 2	6.5V 2.75A
Item Type	Incandescent
Base	P15D
Voltage	6.5v
Wattage	2.75w
Bulb Shape	S8
Bulb finish	CLEAR
Filament	C-6U
Mean Lumens (lm)	289
Life (hr)	100
Diameter (mm)	25
MOL (mm)	48
Light Center Length (mm)	25.4
