USHIO UXL 2000FS 2000w Xenon Short Arc Lamp

Ushio SKU: 5001063
$76999 $1,000.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

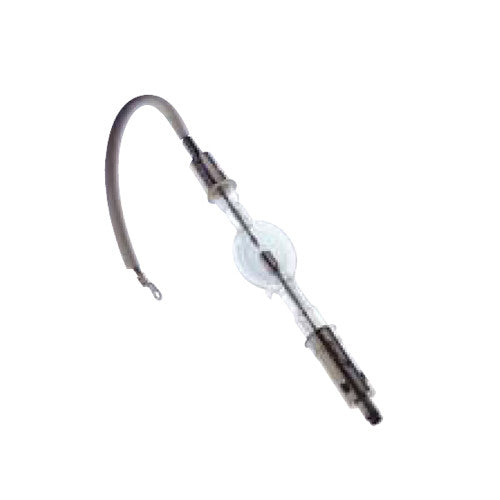

The USHIO Xenon short art lamps are specifically designed and approved for use in strong high performance followspots. During manufacturing, the quartz tip-off position was moved to the cathode side of the lamp to allow easier installation and a more precise fit into the reflector. The cable on the UXL-2000FS has been lengthened to allow ease of lamp positioning during installation.

Ushio UXL series are high pressure, short-arc Xenon discharge lamps. UXL spectral distribution is well balanced in the visible spectrum to resemble daylight. The high gas fill pressure provides high luminance and high luminous efficacy. Fast ignition and a stable arc are what USHIO has achieved with the UXL lamp design.

Product Features:
- Bulb Type: High Intensity Discharge Bulbs (HID)
- Item Type: Xenon
- Shape: Double-Ended
- Voltage: 29, Wattage: 2000
- Burn Position: H15/V15
- Bulb Finish: Clear
- Rated Life: 2000 hrs
- Diameter (in): 2.17
- MOL (in): 14.57
- Light Center Length (in): 5.71
- Ozone Free: Yes
- CA Prop 65: Yes
- CA Prop 65 Material: Mercury

Applications:
- Concert Touring
- Theatrical Events
- Sports Events
- Special Venues

Specs

Bulb Type High Intensity Discharge Bulbs (HID)
Prod. ID / Ansi Code UXL-2000FS
Description UXL-2000FS, Xe, 2000W
Description 2 2000W 29V
Item Type Xenon
Shape Double-Ended
Voltage 29
Wattage 2000
Amperage 70

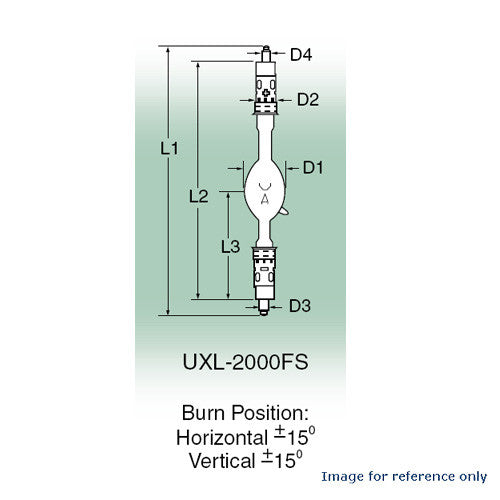

Burn Position H15/V15
Bulb Finish Clear
Arc Gap (in) 0.24
Contact to Contact (in) 12.6
Front Glass Cover No
Rated Life 2000 hrs
Diameter (in) 2.17
MOL (in) 14.57
Light Center Length (in) 5.71
Ozone Free Yes
CA Prop 65 Yes
CA Prop 65 Material Mercury
