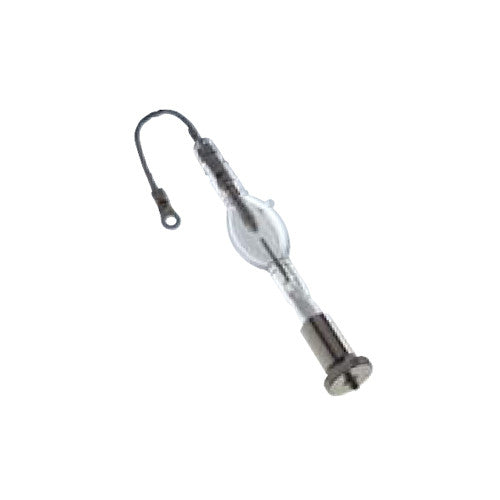

USHIO UXL 351 E-0 350w Xenon Short Arc Lamp

The USHIO Xenon short art lamps are specifically designed and approved for use in strong high performance followspots. During manufacturing, the quartz tip-off position was moved to the cathode side of the lamp to allow easier installation and a more precise fit into the reflector. The cable on the UXL-351E-O has been lengthened to allow ease of lamp positioning during installation.

Ushio UXL series are high pressure, short-arc Xenon discharge lamps. UXL spectral distribution is well balanced in the visible spectrum to resemble daylight. The high gas fill pressure provides high luminance and high luminous efficacy. Fast ignition and a stable arc are what USHIO has achieved with the UXL lamp design.

Product Features:
- Bulb Type: High Intensity Discharge Bulbs (HID)
- Item Type: Xenon
- Shape: Double-Ended
- Voltage: 22, Wattage: 350
- Burn Position: H15, Bulb Finish: Clear
- Color Temp: 6000k
- Luminous Flux: 1200
- Rated Life: 1000 hrs
- Diameter (in): 0.86
- MOL (in): 5.24
- Light Center Length (in): 2.62
- Ozone Free: Yes
- CA Prop 65: Yes
- CA Prop 65 Material: Mercury

Applications:
- Concert Touring
- Theatrical Events
- Sports Events
- Special Venues

Bulb Type	High Intensity Discharge Bulbs (HID)
Prod. ID / Ansi Code	UXL-351E-O
Description	UXL-351E-O, Xe 350W
Description 2	350W
Item Type	Xenon
Shape	Double-Ended
Voltage	22
Wattage	350
Amperage	16
Burn Position	H15
Bulb Finish	Clear
Arc Gap (in)	0.11
Efficacy (lm/W)	3.4
Front Glass Cover	No
Color Temp	6000k
Luminous Flux	1200
Rated Life	1000 hrs

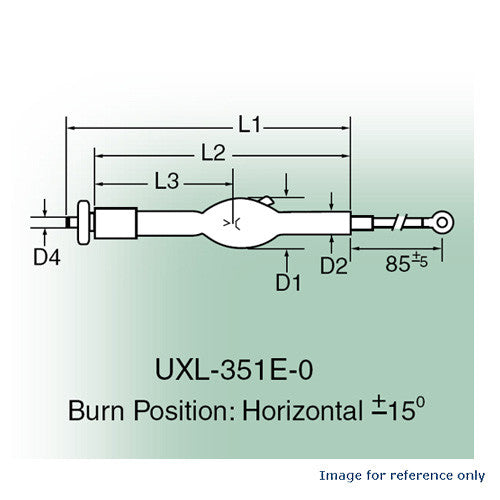

Diameter (in)	0.86
MOL (in)	5.24
Light Center Length (in)	2.62
Ozone Free	Yes
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

5000350 Data Sheet
