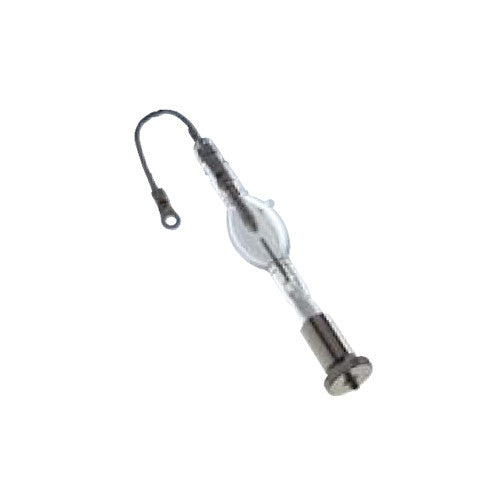

USHIO UXL 553 550w Xenon Short Arc Lamp

The USHIO Xenon short art lamps are specifically designed and approved for use in strong high performance followspots. During manufacturing, the quartz tip-off position was moved to the cathode side of the lamp to allow easier installation and a more precise fit into the reflector. The cable on the UXL-553 has been lengthened to allow ease of lamp positioning during installation.

Ushio UXL series are high pressure, short-arc Xenon discharge lamps. UXL spectral distribution is well balanced in the visible spectrum to resemble daylight. The high gas fill pressure provides high luminance and high luminous efficacy. Fast ignition and a stable arc are what USHIO has achieved with the UXL lamp design.

Applications:
- Concert Touring
- Theatrical Events
- Sports Events
- Special Venues

Cross Reference Part Numbers:
- Ushio 5000368 UXL-553, Xe 550W

Equipment Used In:
- Eiki EX 5000P
- Eiki EX 5500A/S
- Elmo 8397-11
- Elmo CX-550
- Elmo Omni 550
- Navitar 560AF Color Pro
- Navitar XB-560
- Toshiba XD550 C/H-OL
- Wacom KXL-550HF
- Wiko WKXL-550HF

Bulb Type	High Intensity Discharge Bulbs (HID)
Prod. ID / Ansi Code	UXL-553
Description	UXL-553, Xe 550W
Description 2	550W
Item Type	Xenon
Shape	Double-Ended
Voltage	22
Wattage	550
Amperage	25

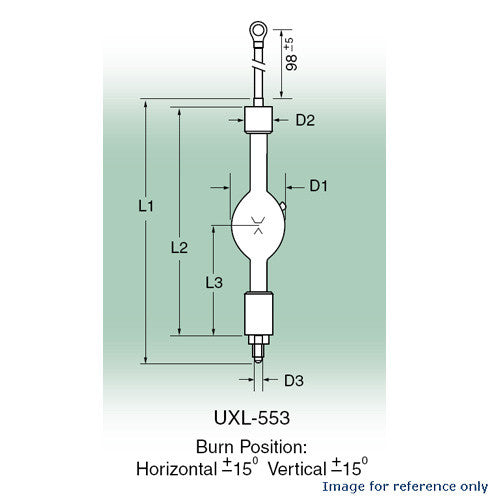

Burn Position	H15/V15
Bulb Finish	Clear
Arc Gap (in)	0.12
Efficacy (lm/W)	31.1
Front Glass Cover	No
Color Temp	6000k
Luminous Flux	17100
Rated Life	1500 hrs
Diameter (in)	1.18
MOL (in)	6.34
Light Center Length (in)	2.56
Ozone Free	Yes
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

5000368 Data Sheet
