Ushio UXR-300BF Ceramic Compact Xenon Medical PE300BF replacement lamp

Ushio SKU: 5002534

Ushio

$26999 $499.99

21 in stock

Description

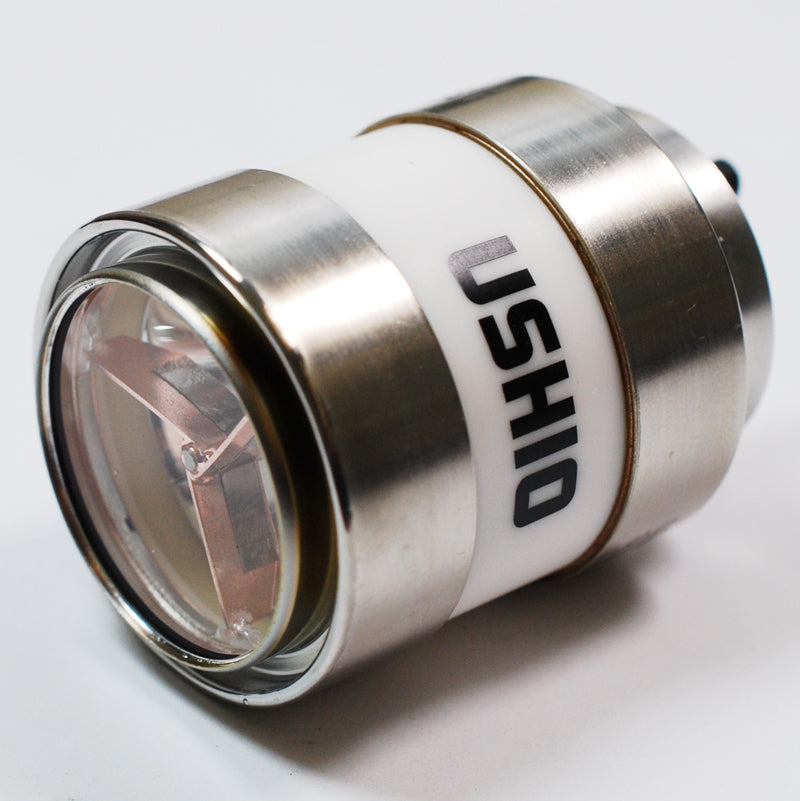

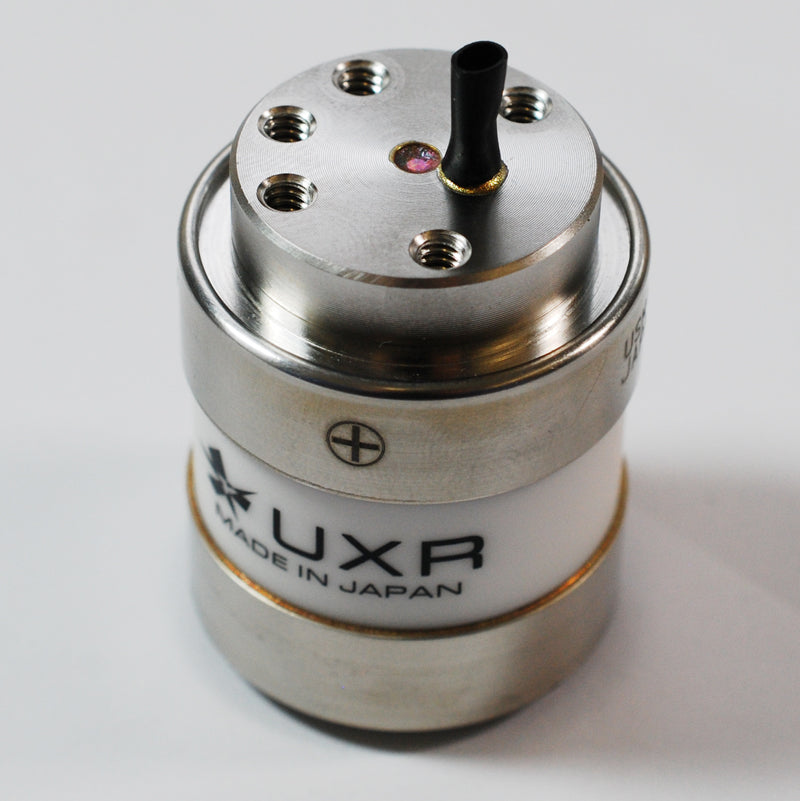

Ushio UXR-300BF Ceramic Compact Xenon Medical Short Arc UXR 300BF Lamp - Xenon Replacement Lamp for Perkin Elmer PE300BF


Compatible Part Numbers: PE300BFA, PE300BF

For Compatible Models please check Cross Reference tab

The USHIO UXR Ceramic Xenon lamps are highly efficient, pre-aligned, parabolic reflectorized lamps for use in numerous scientific, medical and industrial illumination applications. The UXR features strong output reliability over life, highly stable 6100K color temperature, a compact and rugged ceramic to metal seal manufactured body and new window protection design. Manufactured at our ISO-certified plant, all UXR lamps are built to high quality standards for consistent and reliable performance.

FEATURES & BENEFITS
- Rugged Compact Design
- Broad Continuous Spectral Output, High Color Rendering
- Superior Lumen Maintenance
- Demanding Quality Control and Manufacturing Aspects Produce Highly Consistent Lamp to Lamp Performance
- New Window Design Protects Against Scratching and Surface Contamination

APPLICATIONS
- Endoscopy
- Surgical Headlights
- Microscopy
- Borescopy
- Spectroscopy
- Visible / Infrared Searchlights
- Machine Vision
- Solar Simulation
- Projection

Specs

Arc Gap (mm) 1.5
Base Special
Base Temperature (degrees) Max. 200
Bulb Type Xenon HID Bulbs
Burn Position Horizontal
Ceramic Body Temperature (degrees) Max. 150
Color Temperature (K) 6100K
Control Constant Current & Power Control
Current (A) 20
Current Ripple (P-P) Max 5%
Forced Cooling Necessary
Igniter Voltage Min. AC23kV
Luminous Flux (LM) 4500
Rated Life (hr) 500
Reflector Parabola
Spectral Type Ozone Free
Supply Voltage(V) Min. 140V
Voltage (V) 15V
Wattage (W) 300W
Window Diameter (mm) 25.4

Cross Reference

3D Scope :300W Xenon
ACMI/Circon: ALV-1, MV-9086, MV-9087
Acufex: FRX300 Xenon, FRX3000, Ultra lite
Aculux: AX 3001, AX 3002
Acuity: A09501, A09502, Ultralife 013845
ALM MTA: Starpointe XE
ACMI - CIRCONALV-1, MV-9086, MV-9087
Applied Fiberoptics: Brite Lite III, #01-30-40
Baxter - V Meuller: GS9205, OPSIS VS5500, VS5600 & LA8000
Baxter - Edwards: OPTX300
Bei - Xylog: 300W Xenon
BFW: Maxeon Xi300, MID 3010
Birtcher Solos: GS9272
Burton: Xenalux Headlamp, Xenalux Illuminator
Cabot Medical: System 3000 Video Lamp
Circon - ACMI: ALV1, MV-9086
Concept - Linvatec: 8170, 8180, 8430, 8431
Cooper Surgical: Endomed LSS-700
Cuda Fiberoptics: M2-300 and XLS-300
Dyonics (Smith & Nephew): Dyo-Brite 3000XE, 300XL
EG&G: 300W Applications
Endo Image: 300W Xenon
Endo Lap: FOI 160000, S605-25
Endomedics: S1500
Envision: 9430
FPO (Fujinon): EPC301C, EPX302, EXP302, FLX300F, XL401, Y1072, Y1089
Fujinon: Light Source machine Model XL-4400 for E400, E 400, EPS-301, EPX-301, EPX301A, EPX-302, EPX-304, EPX-401, FLX-300, FLX-300A, FLX-300F2, FLX600, FLX2000, FLXDS300, FLXDS600, FRX-2000
Fulton: Denta Cam Inta Oral
Getinge Castle-ALM: Starpointe XE
Kay: Swallowing Workstation
ILC: Y1153, 300W Applications, PE300BF, LX300BF, ORC300BF
Isolux: XSB 300W Illuminator, XSB1300, Millenium
Laborie: 300W Endoscope
Leica: FO Illuminator, F40, M520 OH3, MS1, MS2, MS3, OH3, OH4, OH5, OHS1
Leisegang: LMS-3000 Illuminator
Leitz: Endoscope, Linvatec (ConMed): 300W Xenon, 8170, 8180, 8430, LIS8430
Lorenz: Lumenon Xenon Headlight
Lumlite: 300W Endoscope
Luxtec: 1300, 1600, 6000, 7000 (300W), 8000, 9000 (300W), 9300 (300W), 9300XDP, 9300XSP, LUX 9000, LX300
Luxtel: Isolux XSB 300 Illuminator
Machida: RX-300T
Medical Dynamics: 6100XE, 6600XE
Mist: 300W Xenon
Mitsubishi: LS-3-S, LS-3-X, LS300X,
Nextec: 300W Xenon, 1300
Olympus: CLV10, CLV-20, CLX-F10, CVLF10 (PN Y1052), CLV-160 Light Source, Original MD-631, Y1064S, CLV-180, CLV-260, CLV-260SL, CLVA, CLV-A, CLVS, CLV-S, CLVSO, CLV-SO, CLVSBO, CLV-SBO, CLVS20, CLV-S20, CLVS30, CLV-S30, CLVS40 , CLV-S40, CLVU20, CLV-U20, CLVU40, CLV-U40 Y1064S, (PN Y1064), CLVU60, CLV-60U, CLV-20U, CLX, CV-1, ILX6300, MD631, GX2187, GX-2187
Origin Medical: 300W Xenon
ORC: 5800, 5800E, CIA, CIO, CIS, CIT, CIW, ORC6000, 300W Applications
Pentax: Video Processor OLX4 EMP3000, EPM3500, 3300 & LX3000, EPM300P, LX300
Perkin Elmer: 300W Applications, PE300BF, LX300BF, ORC300BF
Pilling Weck: 300W Xenon
Products for Medicine: White Sun 300W & XL300
QED: 3010 300W Light Source
SLM: Aminco SPF500C
Smith & Nephew: 300XL, Dyonics 300XL, Dyonics 500XL, Dyonics Dyobrite 3000XE
Snowden Pencer: Xenon L/S 300W
Solos: GS9272, GS9255
Storz: 300, 487, 487B, 487C, 487XE, 610, 610C, 610XE, 611, 611XE, 630, 201320-20, 201330-20, 20133027, 20133028, 20134020, 20133625, D-Light C 20133620, NOVA 20134001
Stryker: X6000, 220185300
Sunoptics Surgical: SolarMaxx 300, Titan 300, XLS300
Tagarno: 35AX Acubeam

Templar: XIV-300
Toshiba: TRE-3000
TTI/Tagarno: 35AX AcubeAM
Vanguard: XR-35, XR-300, XR-350, XRM-4
Video Dunamics: XLC-300
Vitalcor: Applied Fiberoptics Britelite III
V. Mueller/Braxter: GS9205, LA8000, Opsos VS5500, Opsis VS5600
Weck: FRX 2000, Wecklite 300, Wecklite 1300
Welch-Allyn: 49820, Proxenon 350 Surgical Illuminator, VP2000, VP3
Wolf: 300W Xenon, 5131, 5151XE
Woodbine - Solo: GS9255, GS9272
Zeiss: Superlux 300, Superlux 301 (with timer)
