Wedge Base ceramic socket - TP20X Lamp Holder Replacement

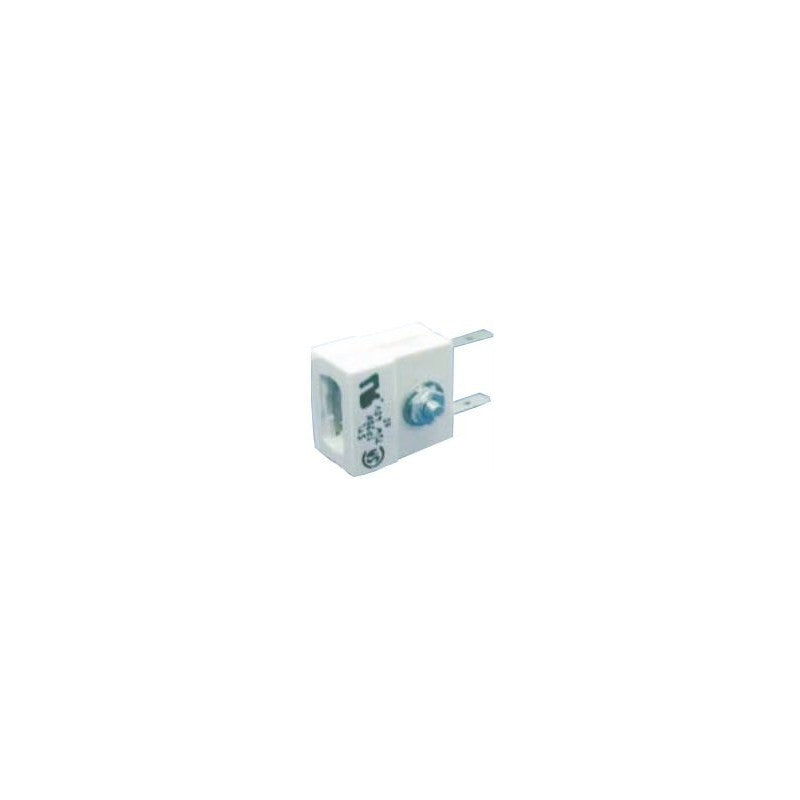

TP20X Nickel Plated ceramic lampholder socket for Wedge Base miniature light bulbs

Cross Reference:
- Osram 69739 TP20X NO LEADS

Features:
- Maximum Wattage: 75W
- Maximum Voltage: 40V
- Maximum Operating Temperature: 225° C
- Qualifications UL Recognized – E31557
- CSA Certified – LR20904
- Body Material: Steatite

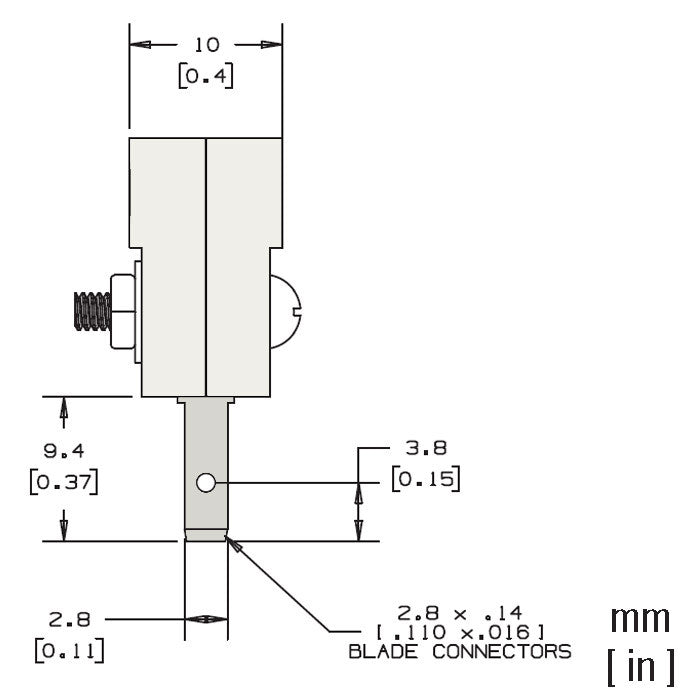

- Contact Material: Nickel Plated Stainless Steel Attachments .110" x .016" support receptacle

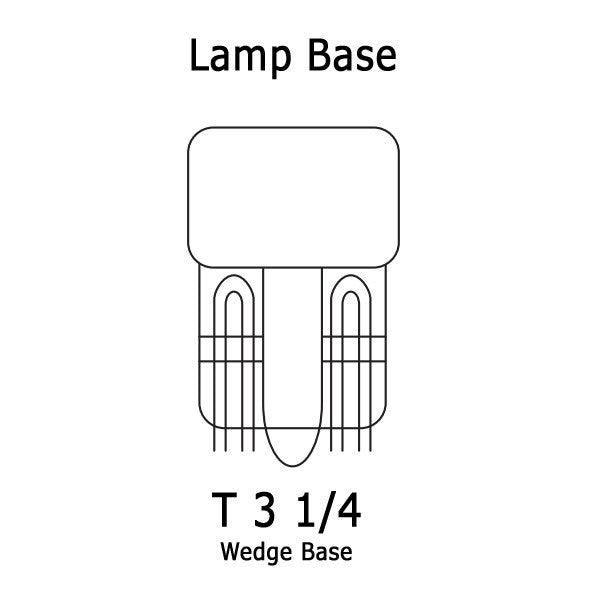

Base MS	Wedge
Contact Material	Nickel Plated Stainless Steel
Operation Temperature (F)	437
Voltages (V)	40
