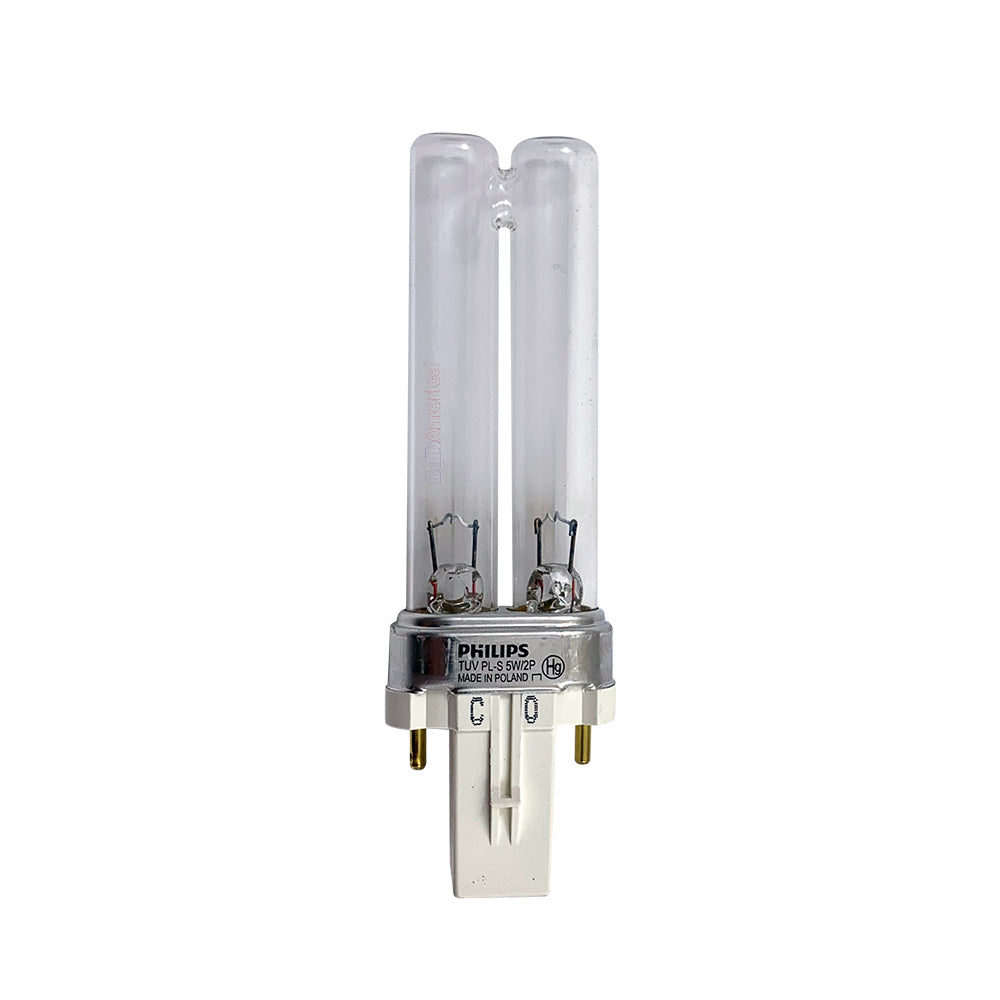

Philips TUV PL-S 5W/2P 5w 2-Pin G23 UVC Germicidal Light Bulb

Philips 381863 TUV PL-S lamps are compact UVC (germicidal) lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. The Philips 381863 TUV PL-S lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Benefits:

Security of effective disinfection over the useful lifetime of the lamp

Good environmental choice because of lowest amount of mercury

High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection

Philips 381863 TUV PL-S Features:

Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes

Protective inside coating ensures constant UV output over the complete lifetime of the lamp

4-Pin PL-S lamps are designed for use on electronic drivers

EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Warning & Safety:

DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.

12NC Code	927900504007
SKU	381863
Abbreviation Name	TUV PL-S5W/2P
Base	G23
Bulb Type	Germicidal Bulbs
Diameter (in)	1.102

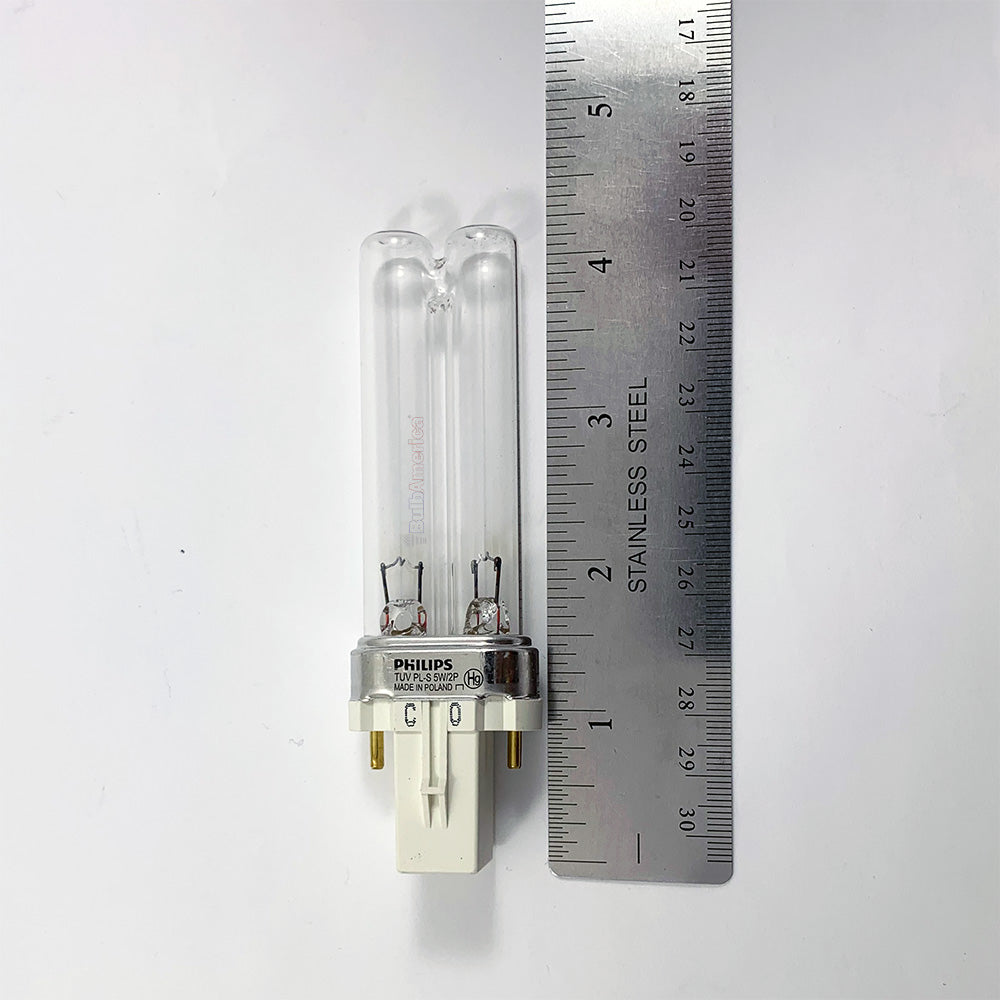

Maximum Overall Length(in)	4.133
RatedLife (Hours)	9000
Shape	Single Tube2-PIN
Wattage (W)	5W
EPA Approved	Philips /Signify EPA# Est. No 95792-POL-1

Manual:

Ozone emissions Philips TUV lamps
Philips 381863 TUV PL-S 5W/2P
TUV PL-S 5W
Philips UV Technology
Philips Germicidal CFL EU Declaration of Conformity
